HTS Design Services PORTFOLIO

NYMR North Yorkshire Moors Railway

Detailing of the replacement roof trusses to the Pickering Train station. The roof trusses had to replicate the original wrought riveted trussed roof  built in 1847 by GT Andrews

Software used - AutoCAD

Bulk Outload Structure - 50T

Design and detail of a Bulk  Outload structure support 6 no. 20m high flour silos to fill tankers

HTS provided the whole package on this project from initial scheme layouts, through the structure and foundation designs to the issue of the fabrication details.

Software used - Tekla Structures, Tekla Designer, Autodesk Revit

Twinspan Factory - 330T

Hot and Cold rolled steel detail package from supplied engineers drawing and calculations.

Software used - Tekla Structures

COPFAS Flood Alleviation Scheme

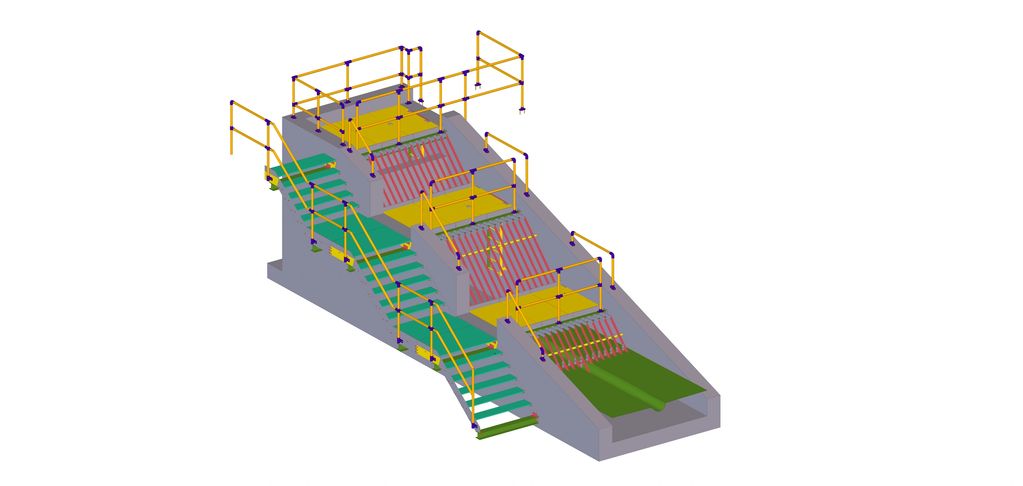

3d point survey of the existing concrete structure then full fabrication package of the trash screens and access stairs/walkways.

Software used - Tekla Structures

Brake Hub & Housing

Develop an new braking system for a powered hoist lift. Produce initial arrangement drawings and a animation video for presentation to the client and their investors. Followed by  manufacturing details.

 Software used - Solidworks
